Seals & Sealing Systems 2018-11-06T02:40:36+00:00

With a history dating back over 125 years, Garlock today maintains a global presence of manufacturing and distribution facilities that allow us to meet our customers’ needs with unprecedented responsiveness and ingenuity.

Seals & Sealing Systems

Gaskets & Sheet

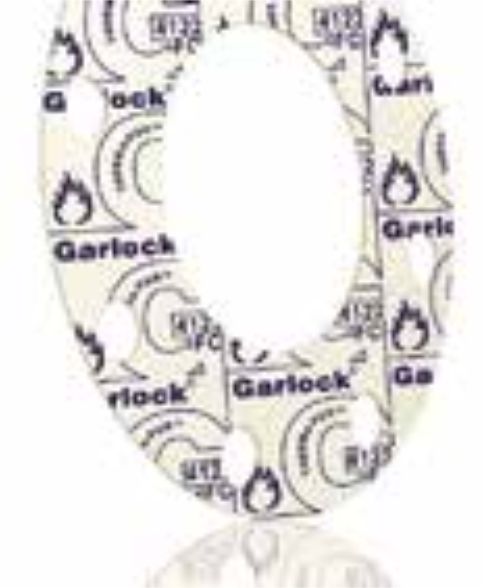

This unique new gasket material is designed for use in high temperature sealing applications, is able to withstand continuous and thermal cycling temperature up to 1,832ºF (1,000ºC). Its proprietary formulation is oxidation resistant, provides electrical insulation and has the ability to resist absorption of water and other liquids.

CONTACT US

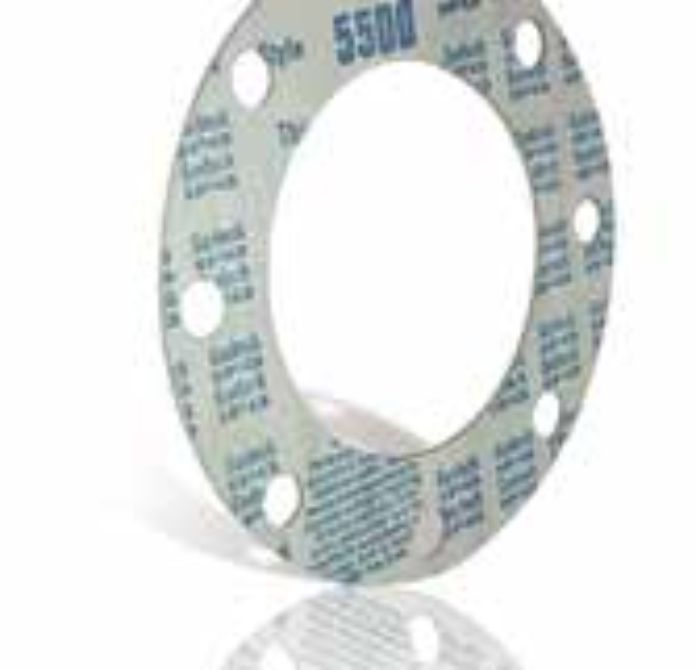

Fiber sheet gasket with a proprietary binder creates a tight seal by swelling in water or oil service. Higher compressibility makes this an excellent gasket for less than perfect flanges. Seals light weight and under-bolted flanges on pipes, gear boxes and more.

CONTACT US

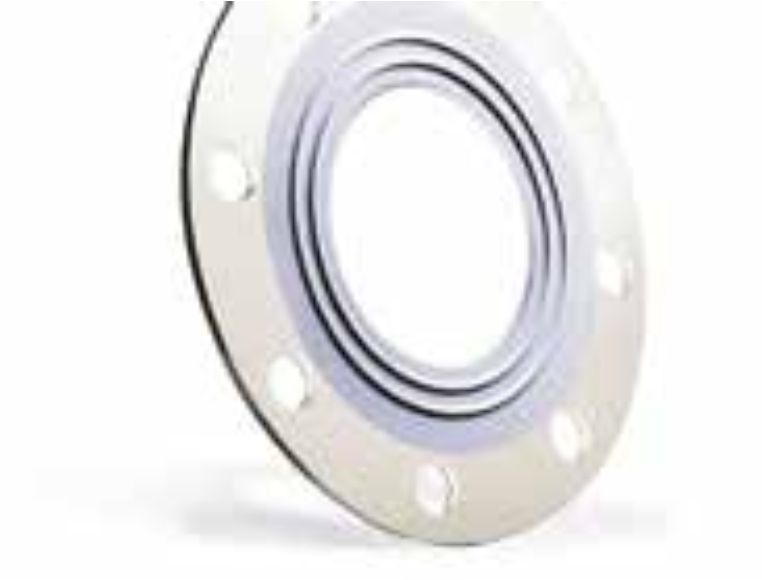

Super low torque gasket for nonmetallic flanges in chemical and ultrapure applications. Available in EPDM, EPDM with a PTFE envelope (jacket), and a proprietary fluoroelastomer for aggressive chemical service.

CONTACT US

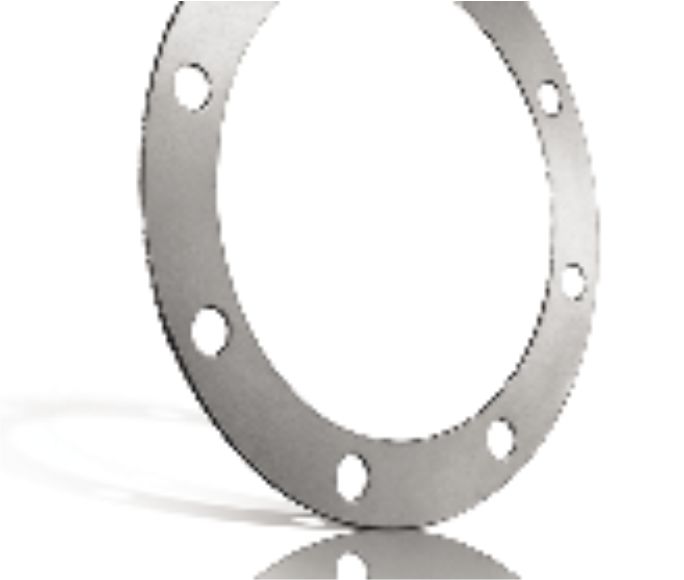

Pure exfoliated graphite material handles extreme temperatures, resists nearly all non-oxidizing chemicals, and offers excellent compressibility and low creep relaxation. Available in homogeneous material, or with metallic or non-metallic inserts.

CONTACT US

High performance multi-layer graphite with 316SS inserts provides high compressive strength, blow-out resistance, excellent handling properties and improved tightness.

CONTACT US

Graphite fiber gasketing withstands extreme temperature and pressure, provides good chemical resistance and is fire safe. Handles and cuts more easily than exfoliated graphite sheet or metal-inserted gasket materials.


CONTACT US

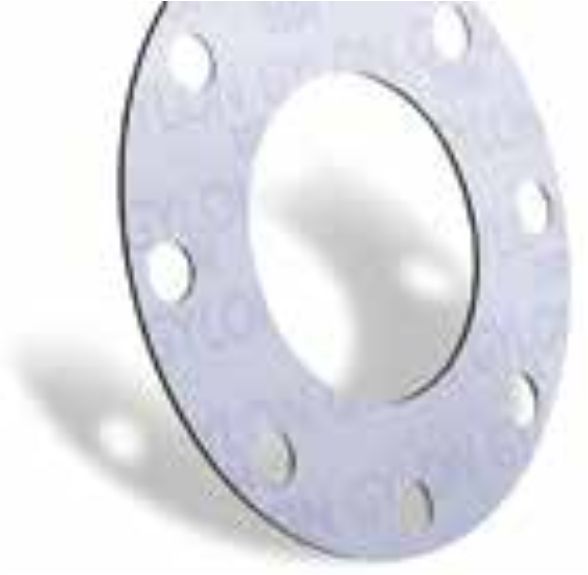

Restructured PTFE gasketing with excellent chemical resistance. Significantly reduces creep relaxation problems typical of conventional PTFE.

CONTACT US

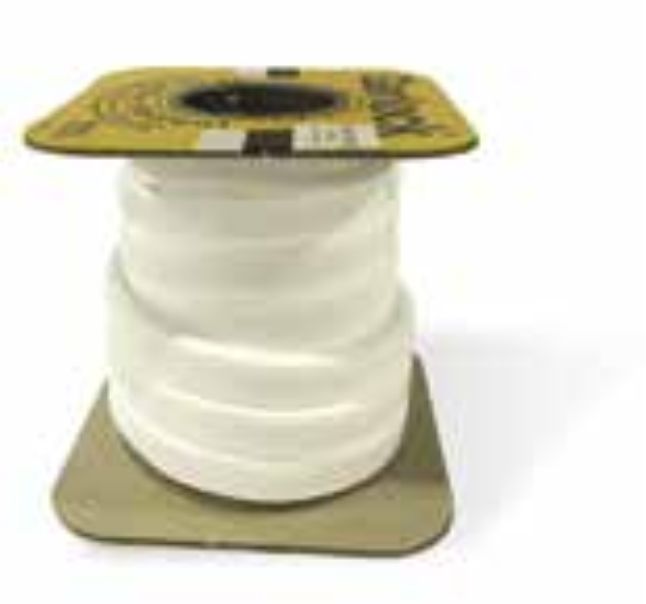

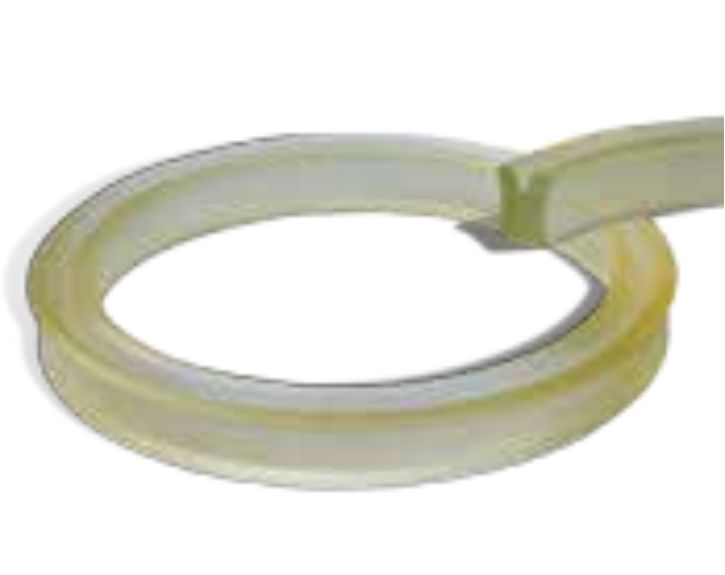

Able to withstand a wide range of chemicals. Is easy to install and continuous length on spools is easily cut and formed. Conforms to FDA regulations and available in widths from 1/8” to 1”

CONTACT US

Inorganic fiber gasketing with excellent thermal stability and torque retention for optimal sealability in temperatures up to 550ºF (290ºC) continuous.

CONTACT US

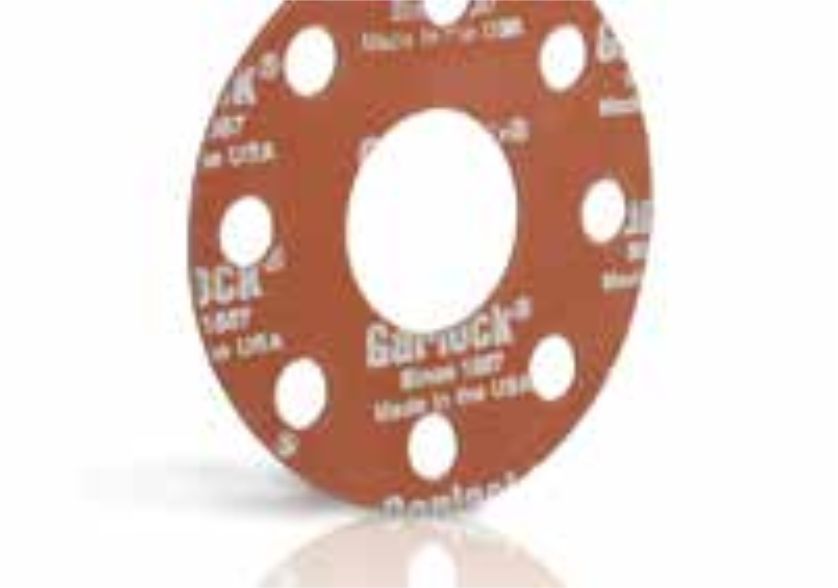

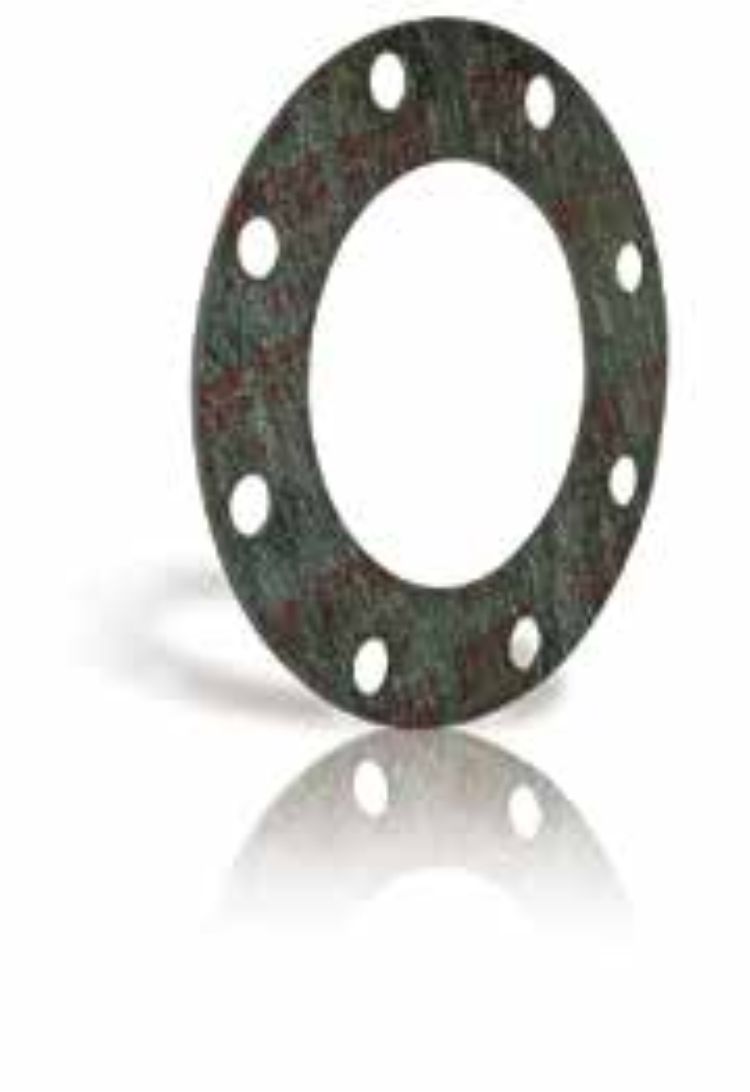

Gasketing material made from a unique blend of fibers, fillers, and a choice of several elastomeric binders. Excels in a wide range of industrial applications.

CONTACT US

Style 9850 gasket is composed of carbon fibers with a nitrile binder. This high temperature gasket has a long-lasting seal, which minimizes cold flow and creep relaxation problems.

CONTACT US

Premium grade elastomer (rubber) sheet products for applications where the low load requirements of rubber are necessary.

CONTACT US

Metallic Gaskets

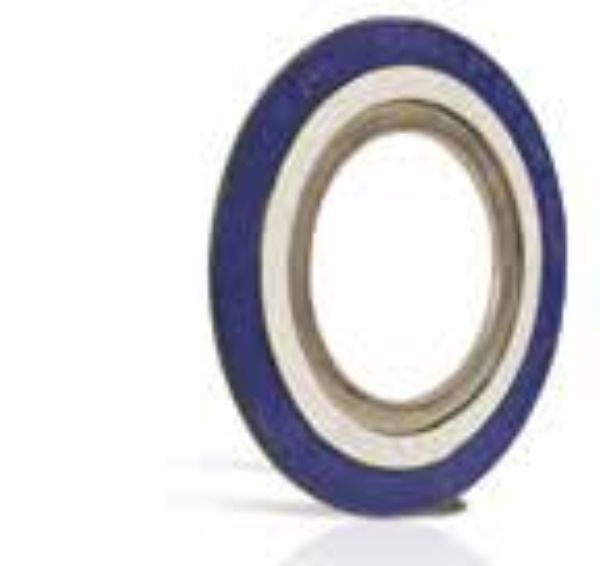

Made by winding alternating strips of metal and soft filler material such as flexible graphite or PTFE. Ideal for standard flanges, heat exchangers, boiler handholes, manholes and other high temperature, high pressure applications.

CONTACT US

Corrugated metal core encapsulated by soft sealing elements. Excellent for high temperatures and corrosive chemicals. Works well in less-than-perfect flanges and thermocycling applications.

CONTACT US

Serrated solid metal core for rigidity coupled with a deformable sealing material for compressibility. Ensures tight, reliable sealing even under low bolt loads. Durable and tight in extreme temperature and pressure fluctuations.

CONTACT US

Custom configurations available in a wide range of materials and gasket styles. Solutions for almost any application.

CONTACT US

In addition to our existing line of THERMaPUR offerings, we are now adding a high temperature THERMa-PUR Spiral Wound. The THERMa-PUR Spiral Wound gasket is designed for use in extreme temperature and aggressive chemical applications.

CONTACT US

Compression Packing

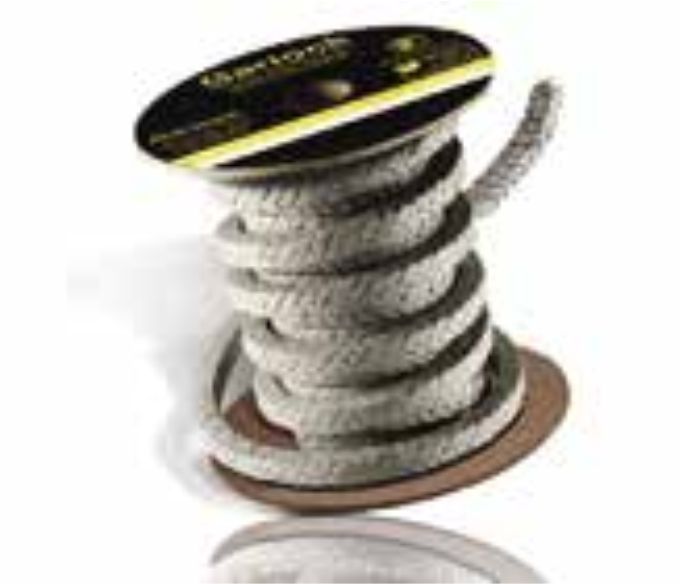

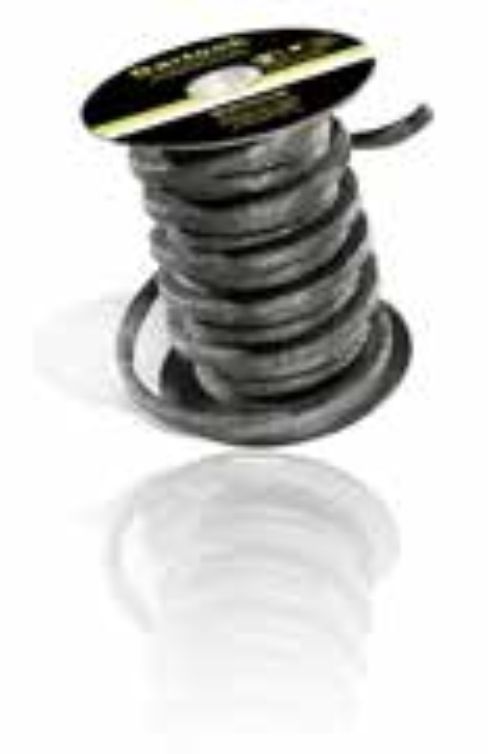

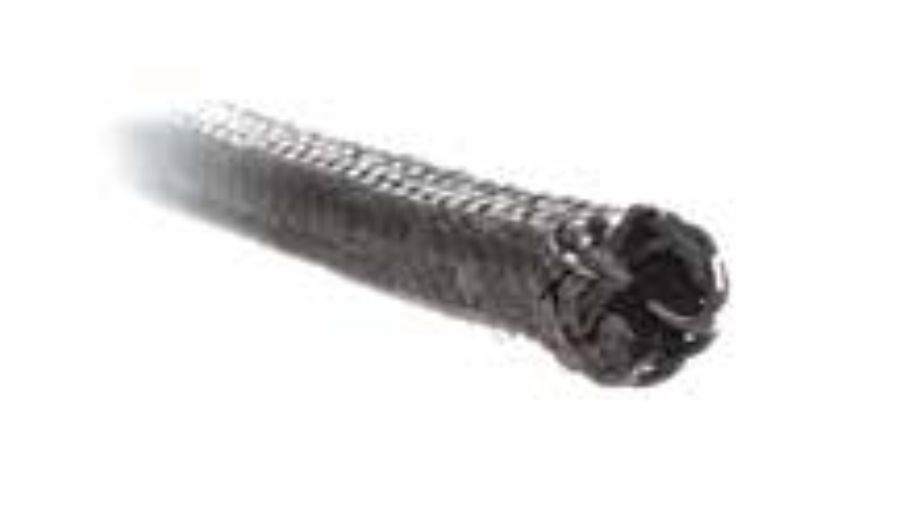

Braided packing combines flexible graphite with a non-scoring filament jacket for high temperature and pressure applications in the chemical, petrochemical and power generation industries. Firesafe and compliant with stringent VOC and VHAP emissions regulations.

CONTACT US

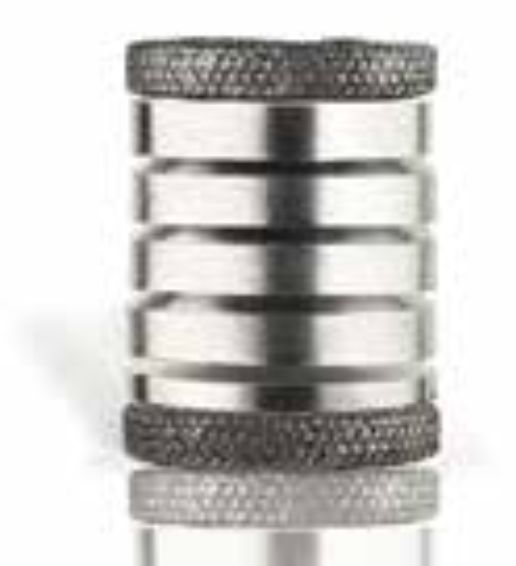

The ultimate solution for environmental protection through reduced VOC emissions. Patented “cup and cone” design permits selective component compression and controlled radial flow, creating an effective seal against both valve stem and bore.

CONTACT US

High density, non-porous PTFE continuous fiber resists chemical attack and prevents leakage through the braid. Ideal for valves and pumps in the chemical and food processing industries.

CONTACT US

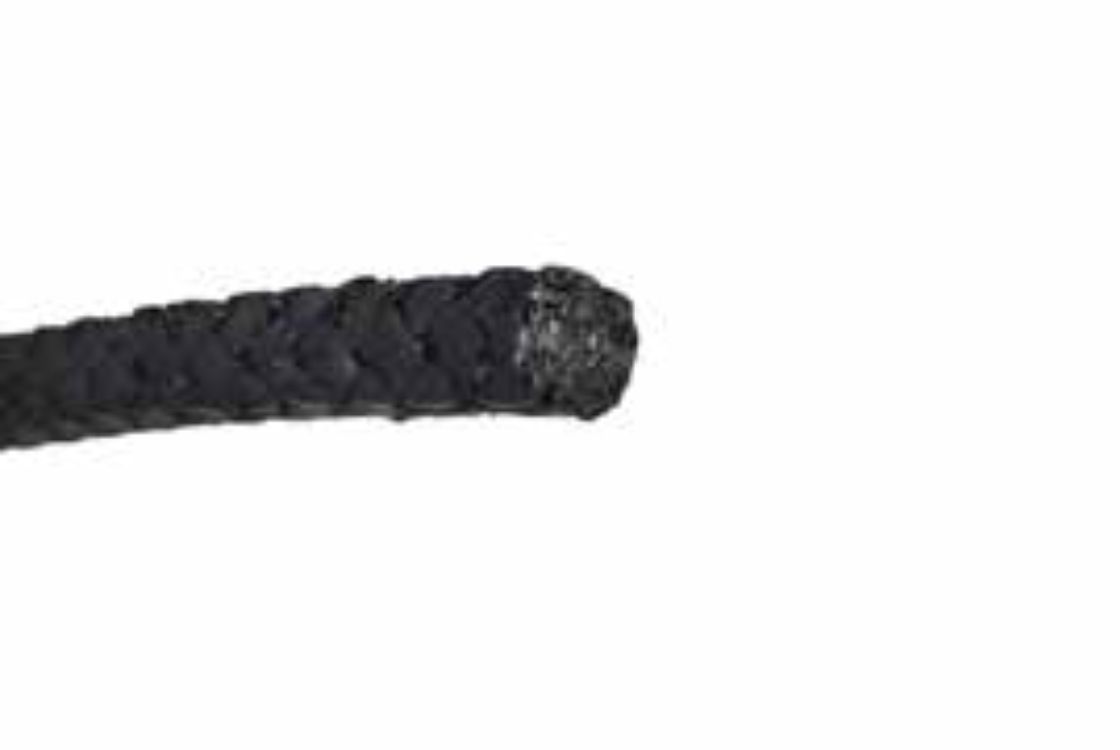

High Temperature non-petroleum based lubricant braiding with graphite dispersion. Able to withstand wide variety of chemicals. AP- 07 fire safe certified.

CONTACT US

Excellent heat dissipating properties of 1333-G allows our customers to converse both water and energy. Braided from graphite fiber reinforced flexible graphite yars and high purity graphite filament yarns. Sealing for both pumps and valves.

CONTACT US

Manufactured from a blend of our own patented fiber-infused PTFE yarns with graphite, and SYNTHEPAK® yarns, impregnated with PTFE suspensoid then coated with snow-white petrolatum break-in lube. Style 1965 can be used in a wide variety of applications

CONTACT US

Expansion Joints

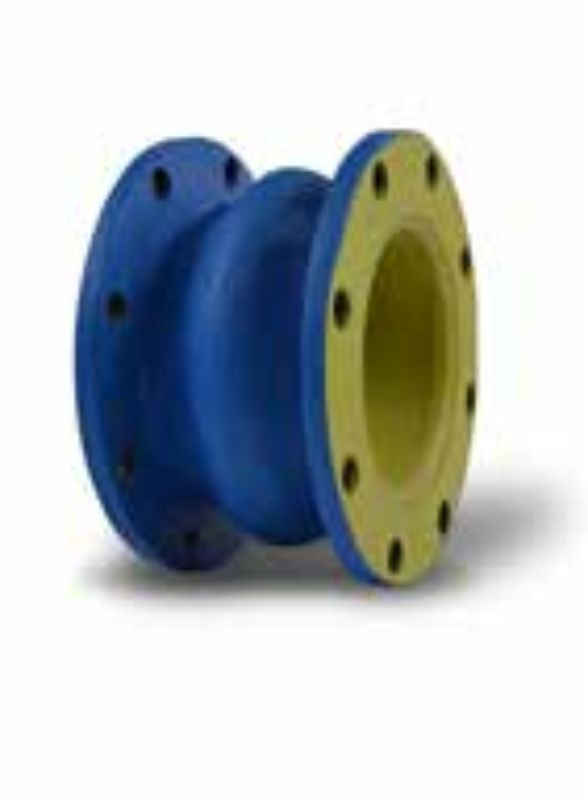

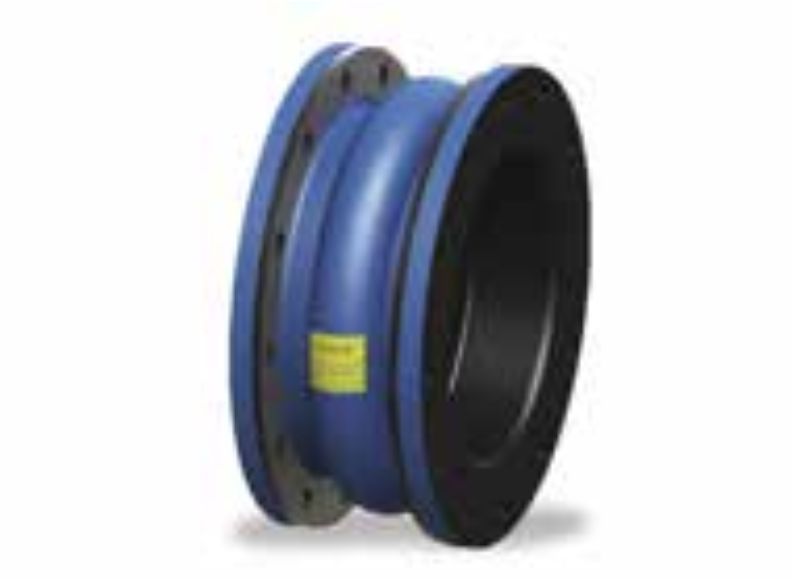

Industry standard spool-type joints with single or multiple arch configuration withstand full vacuum and excessive movement.
Available in a variety of elastomers to handle a wide range of temperature, pressure and media combinations.

CONTACT US

Featuring a unique self-flushing arch, this joint is the perfect choice for difficult slurry applications. The lightweight design is economical and easy to install.

CONTACT US

Specially designed for full vacuum and pressure service in abrasive applications. The tube material is a proprietary urethane formulation. Style 404 can be constructed as a single, multiple, or filled arch design. It can connect pipe flanges in concentric or eccentric tapers to join piping of unequal diameters and connect misaligned piping.

CONTACT US

This expansion joint flowing arch design prevents media buildup and reduces turbulence. The FEP liner resists corrosive attack at elevated temperatures and pressures, making it ideal for the chemical processing and pulp and paper industries.

CONTACT US

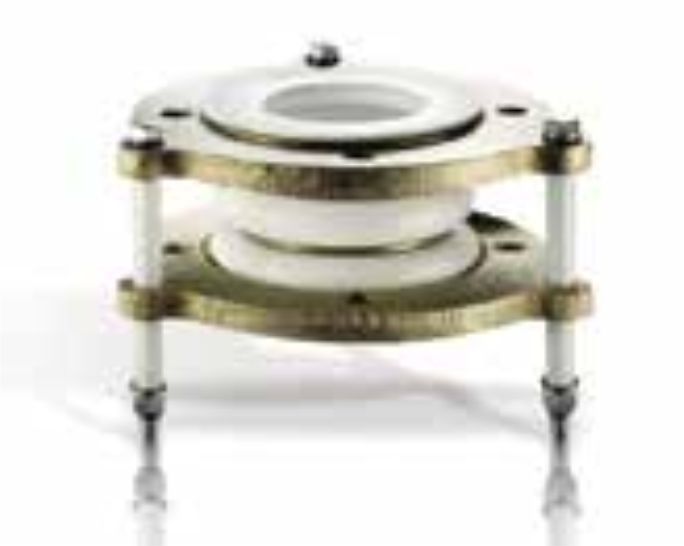

PTFE flexible couplings reduce noise and compensate for expansion and contraction in air conditioning and heating systems. Superior corrosion resistance for  use in the chemical processing industry.

CONTACT US

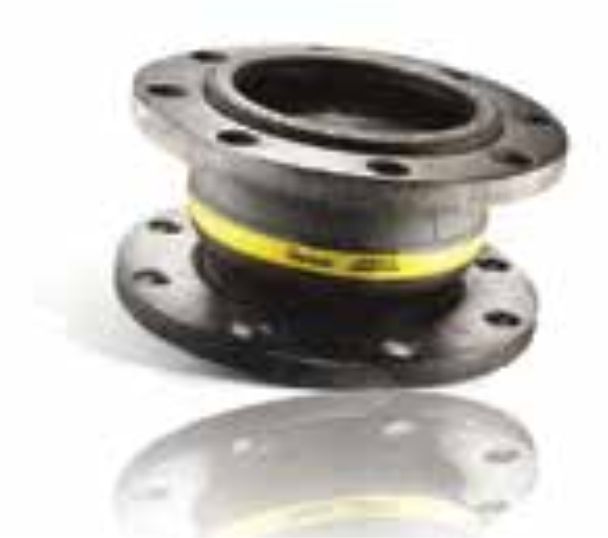

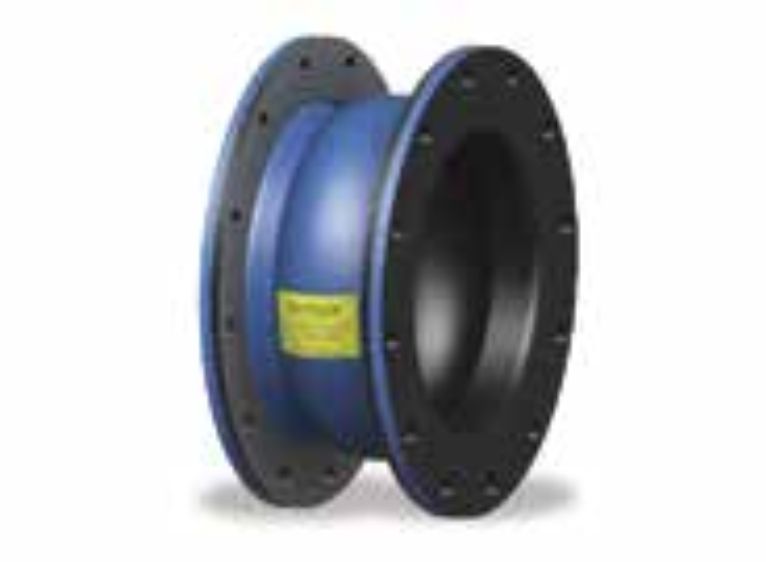

Features rugged yet flexible nylon cord reinforcement in a molded, spherical bellows design that ensures an exceptional burst pressure rating. The streamlined flowing arch design reduces turbulence and allows smooth, quiet flow—no need to fill the arch and restrict its movement.

CONTACT US

KLOZURE®

OIL SEALS

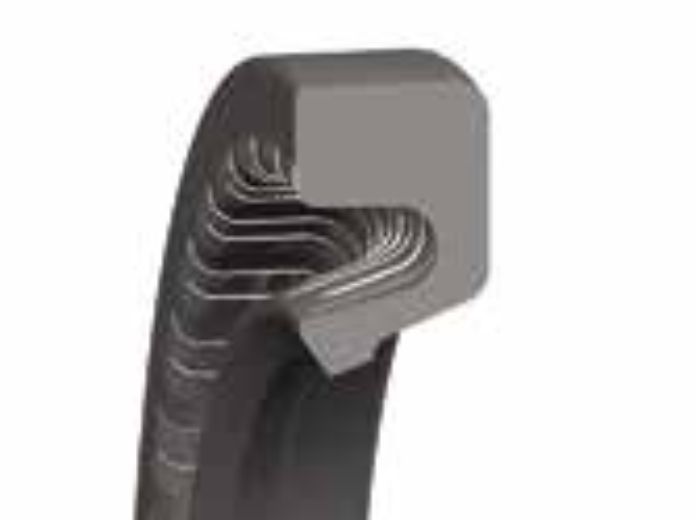

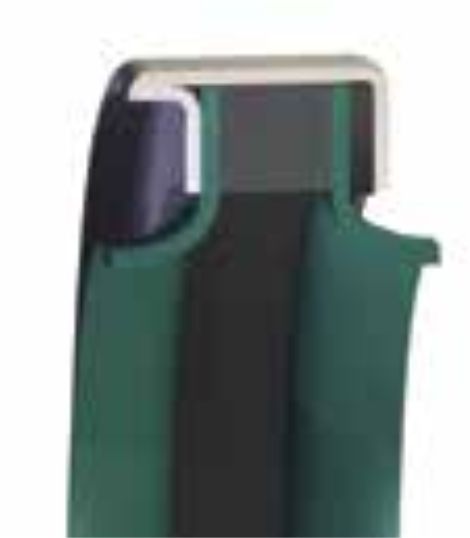

The original split seal has saved thousands of downtime hours. More than 300,000 sizes in Mill-Right® N available in 24 hours or less.  Requires a cover plate)

VIEW DETAIL

CONTACT US

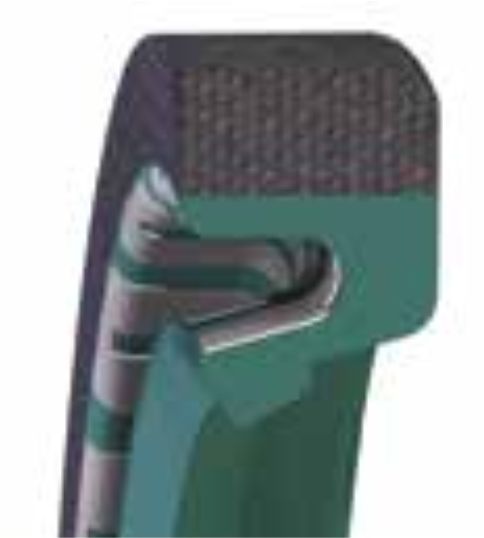

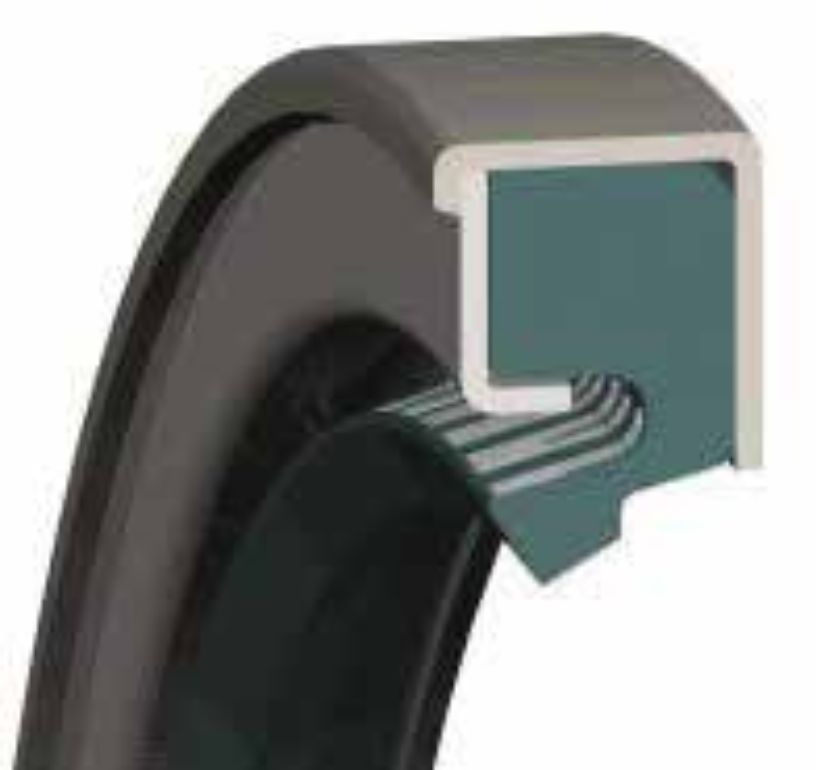

Versatile rubber O.D. seal, available in shaft sizes from 0.750” to 60” in solid and split configurations. (Split seal does not require a cover  late)

VIEW DETAIL

CONTACT US

Metal O.D. large-bore seal for moderate to severe operating conditions. Reverse bevel lip allows installation in either direction without rollover.



VIEW DETAIL

CONTACT US

The exclusive Garlock GYLON® lip material provides outstanding resistance to chemicals and high temperatures, with greatly reduced creep and cold flow as compared to standard PTFE. Runs dry up to 800 fpm.

VIEW DETAIL

CONTACT US

Fifty years of proven success in severe service, large-bore applications. Accommodates the highest speed (7,000 fpm) and misalignment/ runout (0.125”) in the industry.

VIEW DETAIL

CONTACT US

Combines the sealing and installation ease of a rubber O.D. seal with the rigidity of metal. The top choice for many primary metals and pulp and paper applications.

VIEW DETAIL

CONTACT US

KLOZURE®

BEARING ISOLATORS

Unitized PTFE construction of this non contacting, two-piece seal provides excellent chemical and temperature resistance. The ideal alternative to lip seals in nonflooded, oil or grease applications.

CONTACT US

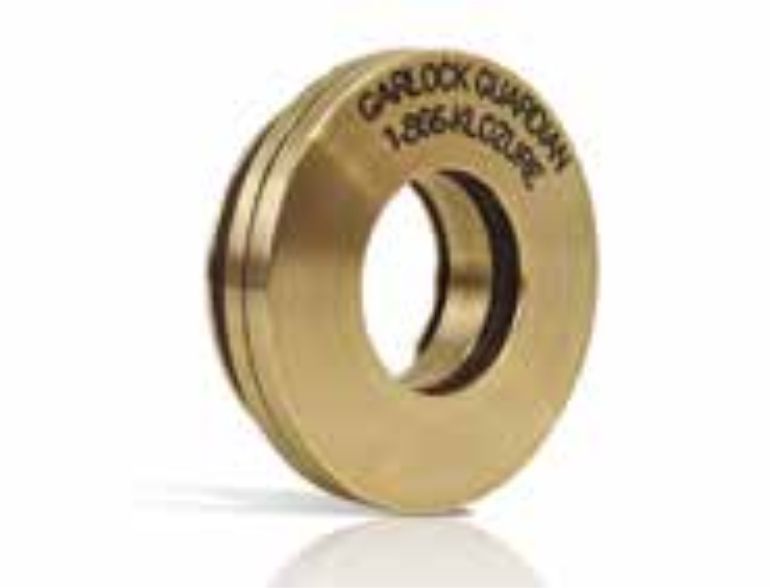

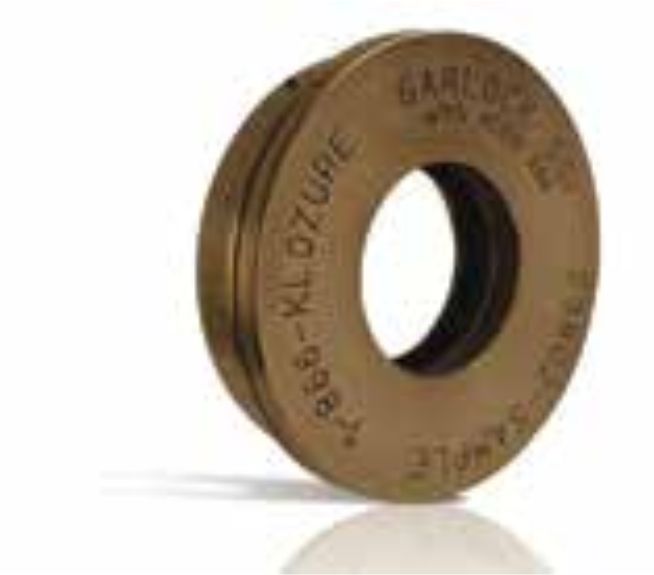

Bronze bearing isolator for non-flooded applications with patented cam-lock system and internal PFTE unitizing seal feature. Surpasses all test requirements as specified by IEEE 841-2001.

CONTACT US

Metallic bearing isolator, designed for applications that require bearing protection in highly contaminated environments. Utilizes microcellular technology to block out airborne contamination. Performance meets NEMA MG 1-2003 as required in IEEE 841-2001.

CONTACT US

The ultimate protection for your bearings!  The Garlock SGi incorporates the proven GUARDIAN™ technology with the only maintenance-free shaft voltage mitigation technology, the AEGIS™ SGR.

CONTACT US

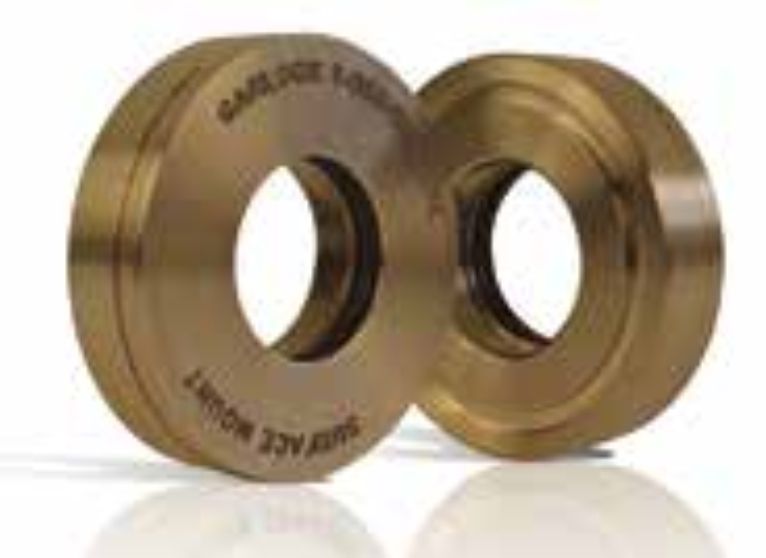

The next member to the innovative
maintenance friendly KLOZURE bearing
isolator family. Surface Mounted bearing isolator designs eliminate the need to machine bearing housings. When bearing protection is required and time to repair equipment is critical, Garlock KLOZURE Surface Mounted Bearing Isolators provide an ideal sealing solution.

CONTACT US

KLOZURE®

MECHANICAL SEALS

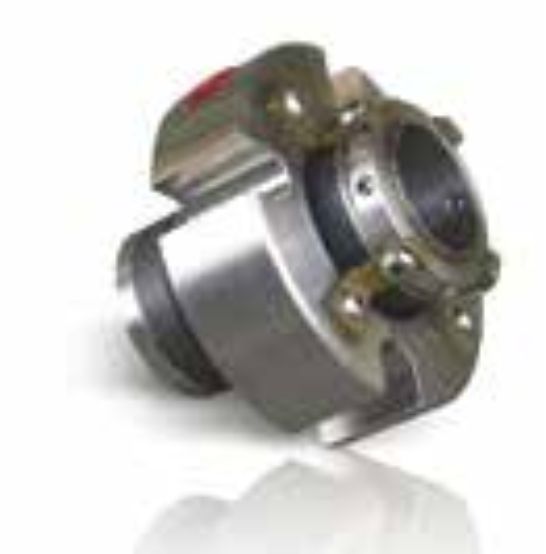

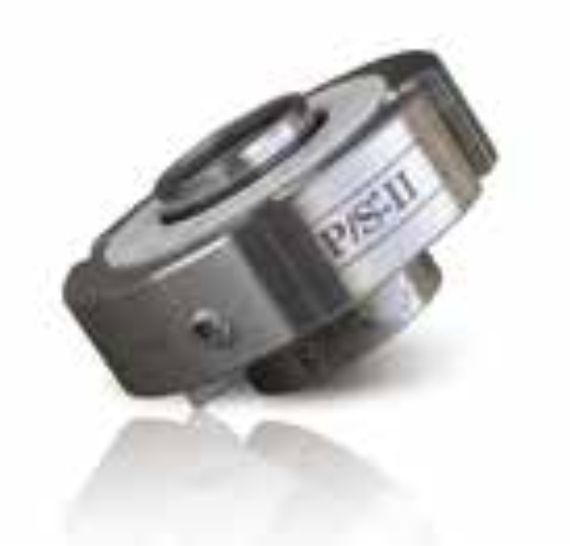

Single or double cartridge seal fits all standard ANSI pumps; especially well-suited for centrifugal pumps.

CONTACT US

Cartridge seal with multiple sealing elements offers excellent performance in thick, viscous fluids; especially effective in positive displacement pumps.

CONTACT US

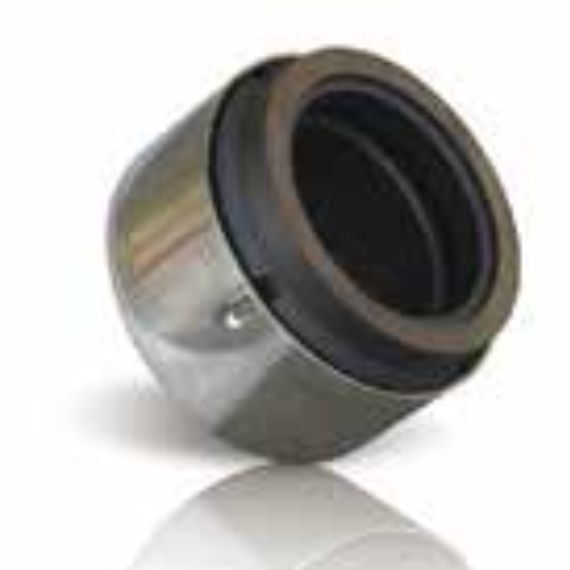

Economical design features a single spring and rubber bellows protected by stainless steel outer shell. Excellent choice for centrifugal pumps.

CONTACT US

Syntron® RP Mechanical Shaft Seals are designed to eliminate the leakage of gases and fluids around the rotating shafts of pumps, compressors, mixers and similar equipment. RP Shaft Seals are compact, cartridge-type double seals.

CONTACT US

Hydraulic Components

V-ring packing with unique multiple lip design automatically responds to changes in system pressure; exceptionally reliable seat for rods, rams, pistons and plungers.  Also available in Deep V-ring design for large diameter, deep stuffing box applications.

CONTACT US

Tough urethane seal with excellent tear and abrasion resistance; withstands a wide range of temperatures, pressures and chemicals. Ideal for plungers, pistons, rams and rods.

CONTACT US

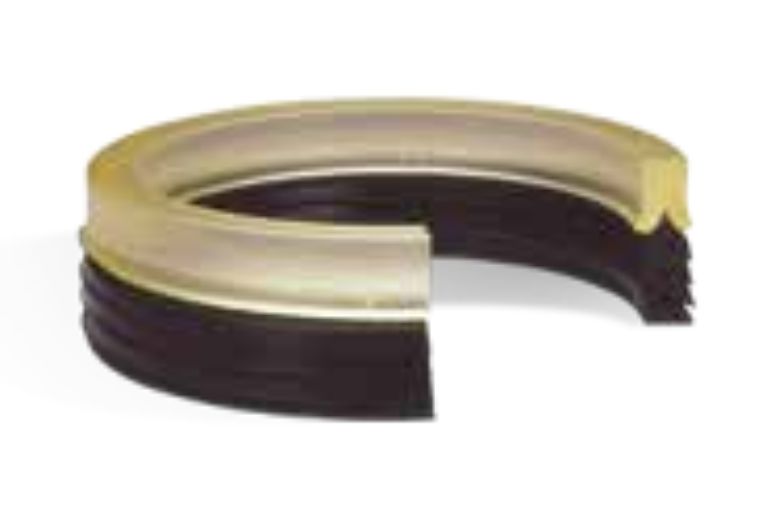

Combining the strength and flexibility of CHEVRON® rings with the abrasion resistance of GARTHANE® U-Seals, the unique Polytop Set offers maximum
sealing performance and reliability.

CONTACT US

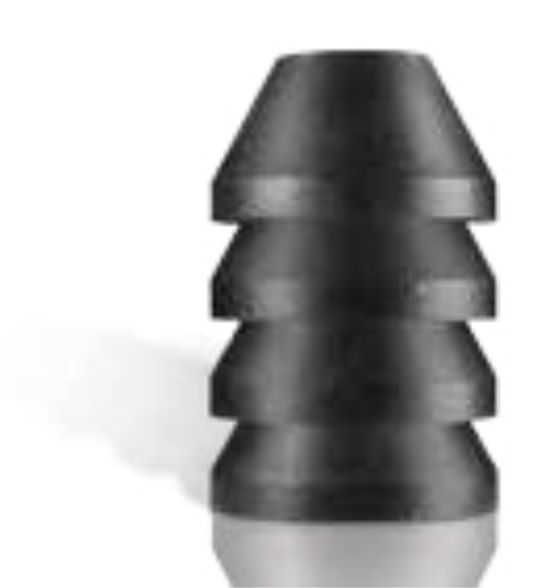

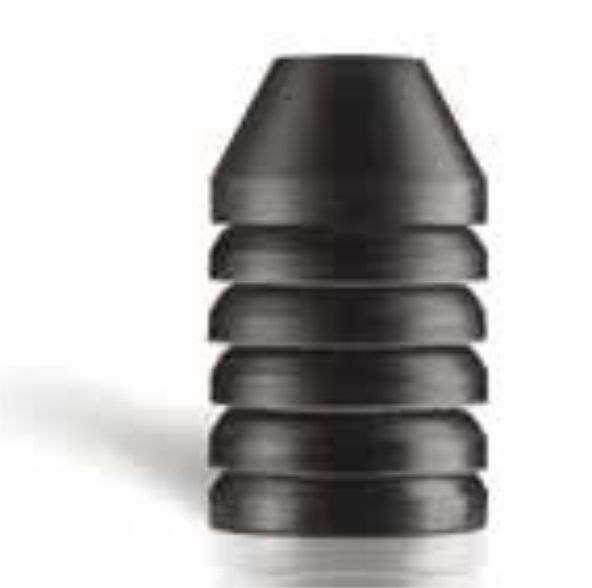

LUBRIKUP® has the quality and experience to satisfy your Cone Packing needs. Cone Packing is available in a wide range of materials: Regular, TEFLON* Flake, DURAGOLD™ (Brass Flake) Impregnated, a Blended DURAGOLD and TEFLON® Flake, or DURATUFF®.

CONTACT US

The sensational performance of Fluid-Seal Rod Packing in a cone-type stuffing box. Liptype sealing action and space between each ring creates a perfect, nonbinding fluid seal.

CONTACT US

Blue DURATUFF® was designed to provide maximum sealability for high pressure well service pumps. The propriety material was developed to eliminate extrusion and provide excellent abrasion resistance for fracturing, acidizing and cementing pumps.

CONTACT US

Diaphragms

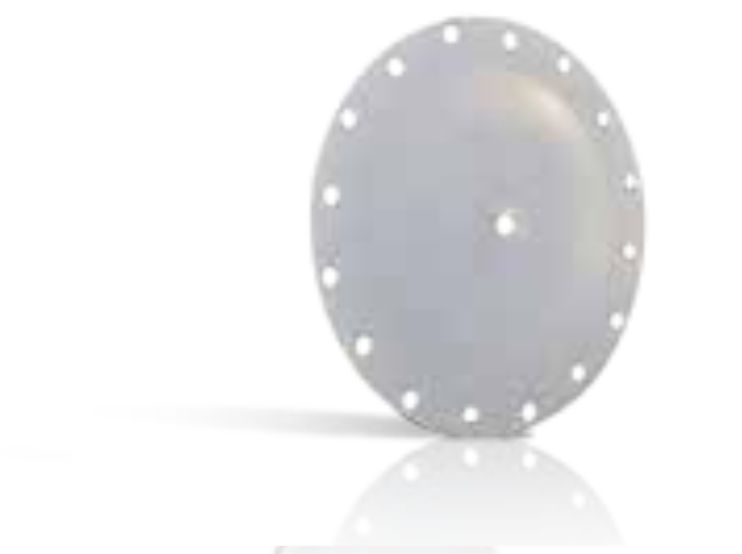

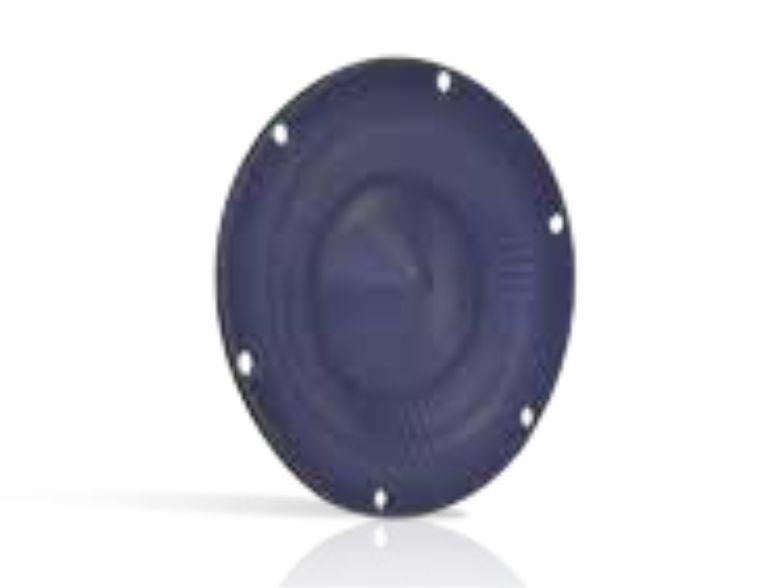

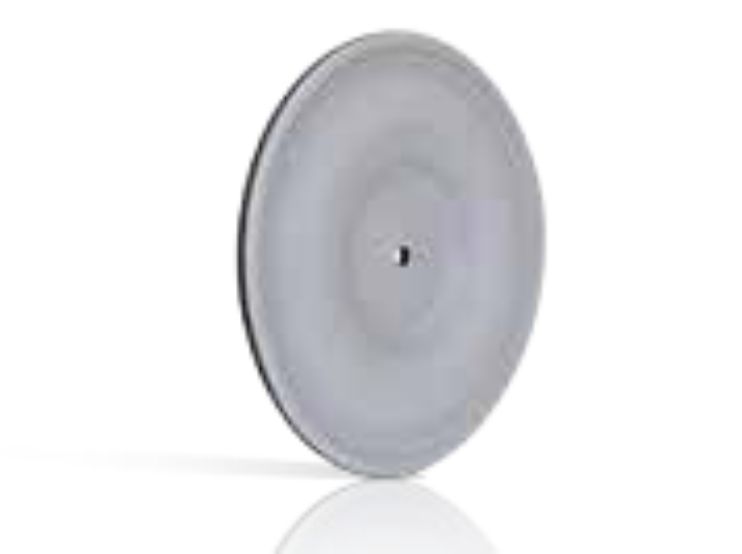

GARLOCK® ONE-UP® Pump Diaphragms are durable and versatile. Containing high performance PTFE GORE® sheet on the wetted side, they last significantly longer than other conventional PTFE diaphragms. These diaphragms provide a dramatic improvement in service life and are considerably stronger, with greater flex life.

CONTACT US

Your solution for sanitary applications in air operated diaphragm pumps. For years the industrial ONE-UP® pump diaphragm has been the first choice for the most demanding industrial applications. We are now introducing the new GYLON® ONE-UP for the most demanding sanitary applications.

CONTACT US

Exclusive to Garlock, this time proven product is made using a proprietary process which optimizes quality and uniformity. Using the best available technology GYLON® PTFE diaphragms offer the longest cycle life in the industry, and continue to outperform all competitive materials.

CONTACT US

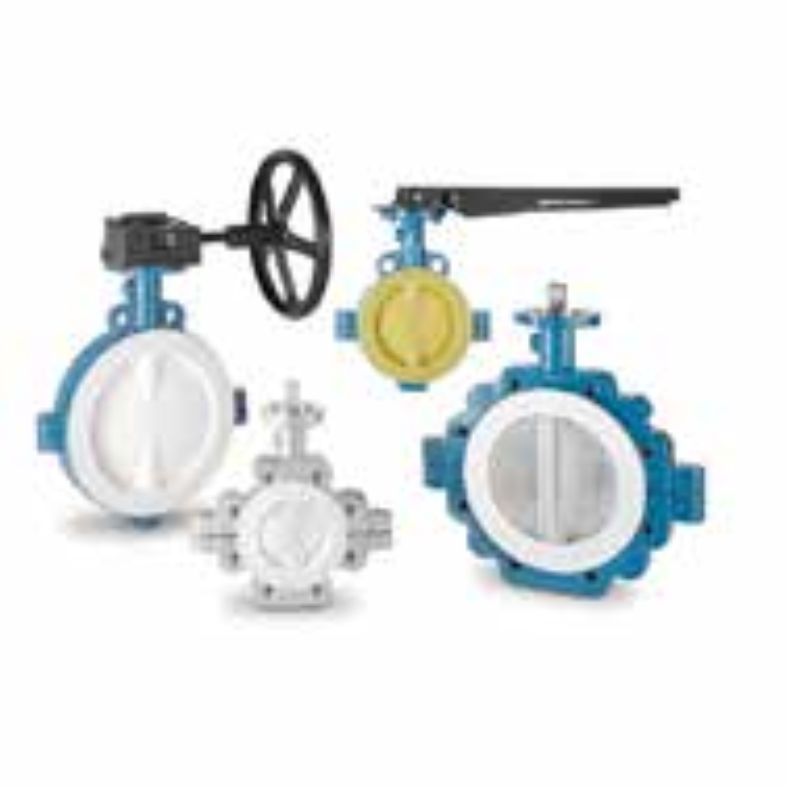

Butterfly Valves

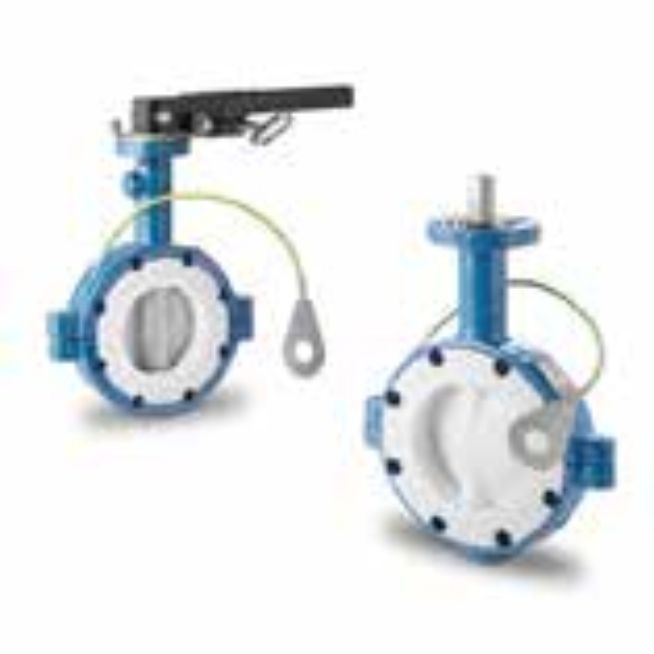

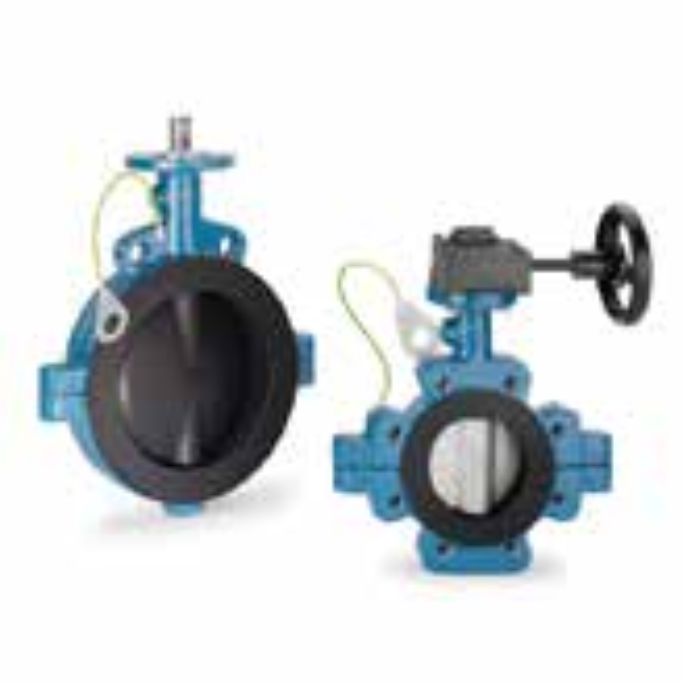

GAR-SEAL valves are used extensively where corrosive, abrasive and toxic media needs to be reliably controlled.

CONTACT US

MOBILE-SEAL valves are used on road tanker vehicles, railway wagons, silos and other transportation and storage containers where high chemical resistance, reliability and special safety requirements are essential.

CONTACT US

SAFETY-SEAL valves are used in applications where corrosive, abrasive and toxic media needs to be handled and electrostatic charges must be avoided at the same time.

CONTACT US
